MALIBU DAVE'S

1.125" Bore Master Cylinder

1919 West Sam Houston Parkway North

Houston, TX  77043

​We ship to Canada.  Additional shipping charges will apply.

                Please email to request a shipping quote.

​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​







For any questions, please email me at david.schultz@manualbrakes.com or call me at 832-264-5566

Chevrolet Silverado (1999-2007)

Chevrolet Suburban (2000-2006)
Chevrolet Tahoe (2000-2006)

GMC Sierra (1999-2007)

GMC Suburban (2000-2006)

GMC Yukon (2000–2006)



*Detailed Installation Instructions Included with All Adapter Plates Sold*

*Canada Shipping Available

    plus
*NEXT DAY SHIPPING*
    plus
*DELIVERY IN TWO TO THREE DAYS*

*Best in industry pedal ratio
*Best in industry brake fluid pressure
*Best in industry brake torque
​________________________________________________________________________________________
________________________________________________________________________________________

1999-2007 Silverado / Sierra Package


MANUAL BRAKE CONVERSION PACKAGE

FOR USE WITH MOST GM MASTER CYLINDERS

OR WILWOOD MASTER CYLINDERS

Part# NBSPKGGM…$139.99


​







FREE SHIPPING TO THE LOWER 48 STATES.

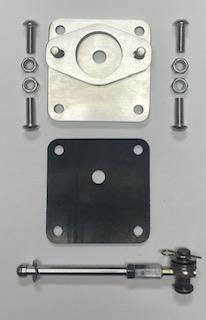

This GM Silverado / Sierra / Suburban manual brake conversion PACKAGE comes with:

  • 6061-T6 ALUMINUM adapter plate w/ integrated push rod retention cup for a GM master cylinder
  • Matching Rubber Firewall Gasket - Keeps the cars interior sealed from the engine bay.
  • Stainless Steel Mounting Hardware - NO rusty bolts or nuts.
  • Adjustable Push Rod Assembly - Engineered to work with and function in the 1999-2007 Silverado / Sierra / Suburban / Tahoe / Yukon.
  • Uses stock brake light switch.
  • Detailed Installation Manual.  Step by step process of the installation.​
  • NOTE:  Pedal will have to be drilled for the new manual brake pin location.
  • NOTE:  Brake pedal power booster pin will have to be pressed out to clear new, manual brake clevis.
  • NOTE:  To clear the firewall cowl, a shorter 1998-2003 S10 reservoir will need to be used in place of the stock 1999-2002 master cylinder reservoir.
    • ​​S-10 Reservoir Part Number - CARDONE 1R2866 without level sensor
    • ​S-10 Reservoir Part Number - CARDONE 1R2958 with level sensor
  • NOTE:  2003-2007 Classic NBS trucks will need aNBS 1999-2002 Chevrolet Silverado 1500 master cylinder and 1998-2003 S-10 reservoir to fit under the cowl.
  • NOTE:  Can be used with truck that came with Hydro-Boost setup with modifications to the firewall.
  • NOTE:  Hydroboost master cylinder cannot be used for manual brakes as is this master cylinder has too large of a bore.
  • NOTE:  Stock master cylinder outlet fittings are both 1/2-20 inverted flare using 5/16" diameter line.
  • ​NOTE:  Wilwood master cylinder outlet sizes are 1/2-20 inverted and use a 3/16" diameter line.
    • ​Will need adapter to use Wilwood master cylinder.

​***DOES NOT INCLUDE MASTER CYLINDER***

​_________________________________________________________________________________________
________________________________________________________________________________________



1999-2007 Silverado / Sierra Package

MANUAL BRAKE CONVERSION PACKAGE FOR USE WITH

MOPAR STYLE OR STRANGE MASTER CYLINDER

Part# NBSPKGMP…$139.99









​

FREE SHIPPING TO THE LOWER 48 STATES.

This MOPAR/Strange style Silverado / Sierra / Suburban manual brake conversion PACKAGE comes with:

  • 6061-T6 ALUMINUM adapter plate w/ integrated push rod retention cup for MOPAR or Strange master cylinders.
  • Matching Rubber Firewall Gasket - Keeps the cars interior sealed from the engine bay.
  • Stainless Steel Mounting Hardware - NO rusty bolts or nuts.
  • Adjustable Push Rod Assembly - Engineered to work with and function in the 1999-2007 Silverado / Sierra / Tahoe / Suburban / Yukon with vacuum brakes.
  • Uses stock brake light switch.
  • Detailed Installation Manual.  Step by step process of the installation.
  • NOTE:  Pedal will have to be drilled for the new manual brake pin location.
  • NOTE:  Brake pedal power booster pin will have to be pressed out to clear new, manual brake clevis.
  • NOTE:  Can be used with truck that came with Hydro-Boost setup with modifications to the firewall.
  • NOTE:  Hydroboost master cylinder cannot be used for manual brakes as is this master cylinder has too large of a bore.
  • NOTE:  Stock master cylinder outlet fittings are both 1/2-20 inverted flare using 5/16" diameter line.
  • NOTE:  Strange 1.032" and 1.125" bore master cylinder outlet sizes are 1/2-20 inverted and use a 3/16" diameter line.

***DOES NOT INCLUDE MASTER CYLINDER***

________________________________________________________________________________________
________________________________________________________________________________________

1999-2007 Silverado / Sierra KIT
 MANUAL BRAKE CONVERSION KIT WITH

MOPAR STYLE MASTER CYLINDER

Part# NBSKIT…$189.99


​







FREE SHIPPING TO THE LOWER 48 STATES.

This GM Silverado / Sierra / Suburban manual brake conversion KIT comes with:

  • 6061-T6 ALUMINUM adapter plate w/ integrated push rod retention cup for a GM master cylinder
  • Matching Rubber Firewall Gasket - Keeps the cars interior sealed from the engine bay.
  • Stainless Steel Mounting Hardware - NO rusty bolts or nuts.
  • Adjustable Push Rod Assembly - Engineered to work with and function in the 1999-2007 Silverado / Sierra / Suburban / Tahoe / Yukon.
  • Uses stock brake light switch.
  • 1.125" Bore MOPAR/Strange style master cylinder.
  • Brake line fitting adapters to mate your stock brake lines from your stock master cylinder to the master cylinder in the KIT.
  • Detailed Installation Manual.  Step by step process of the installation.​​


NOTE:  Pedal will have to be drilled for the new manual brake pin location.
NOTE:  Brake pedal power booster pin will have to be pressed out to clear new, manual brake clevis.
NOTE:  Can be used with truck that came with Hydro-Boost setup with modifications to the firewall.



​​

For any questions, please email me at david.schultz@manualbrakes.com or call me at 832-264-5566

NOTE:  The only NBS master cylinder it will work with is the 1999-2003 Vacuum boosted master cylinder.  All other NBS master cylinders will not work.  Not sure about your master cylinder?  Call us.

1.0" Bore Master Cylinder
