GM A-Body (1973-1977) Chevrolet, Buick, Oldsmobile, Pontiac

Buick Century (1973-1977)
Buick Regal (1973-1977)
Chevrolet Chevelle (1973-1977)
Chevrolet El Camino (1973-1977)
Chevrolet Monte Carlo (1973-1977)
GMC Sprint (1973-1977)
Oldsmobile 442 (1973-1977)
Oldsmobile Cutlass (1973-1977)
Oldsmobile Cutlass Supreme (1973-1977)
Pontiac Grand Am (1973-1977)
Pontiac Grand Prix (1973-1977)
Pontiac LeMans (1973-1977)
Pontiac Can Am (1977-1977)

​​​

*Detailed Installation Instructions Included with All Adapter Plates Sold*

*NEXT DAY SHIPPING*






*Best in industry pedal ratio
*Best in industry brake fluid pressure
*Best in industry brake torque
​________________________________________________________________________________________
________________________________________________________________________________________

1973-1977 GM A-Body KIT


MANUAL BRAKE CONVERSION "KIT"

Part# ABKIT77…$189.99




​

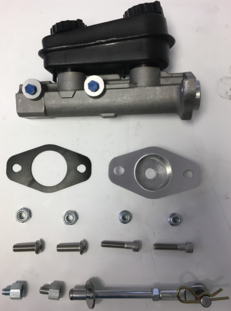

This GM A-Body manual brake conversion KIT comes with:

  • 6061-T6 ALUMINUM adapter plate w/ integrated push rod retention cup
  • Matching Rubber Firewall Gasket - Keeps the cars interior sealed from the engine bay.
  • Stainless Steel Mounting Hardware - Replaces studs on the firewall
  • Adjustable Push Rod Assembly - Engineered to work with and function in the 1973-1977 GM A-Body
  • 1.0" Master Cylinder - For use with stock Big D52 Front Disc and rear drums.
  • NOTE: Call or email if you have a different front and rear brake setup so we can match the master cylinder to the brakes you have.
  • Detailed Installation Manual.  Step by step process of the installation.
  • NOTE:  One stud on the firewall will have to be removed for the master cylinder in the KIT to bolt up to the firewall correctly.
  • NOTE:  KIT comes with all mounting hardware if you want to remove all the studs from the firewall.

________________________________________________________________________________________
________________________________________________________________________________________

1973-1977 A-Body Package

MANUAL BRAKE CONVERSION PACKAGE

Part# ABPKG77…$139.99





​



This GM A-Body manual brake conversion PACKAGE comes with:

  • 6061-T6 ALUMINUM adapter plate w/ integrated push rod retention cup
  • Matching Rubber Firewall Gasket - Keeps the cars interior sealed from the engine bay.
  • Stainless Steel Mounting Hardware - Replaces studs on the firewall if needed.
  • Adjustable Push Rod Assembly - Engineered to work with and function in the 1973-1977 GM A-Body
  • Detailed Installation Manual.  Step by step process of the installation.
  • NOTE:  Upper studs on the firewall will have to be removed if not using a GM master cylinder.
  • NOTE:  KIT comes with all mounting hardware if you want to remove all four studs from the firewall.
  • ***DOES NOT INCLUDE MASTER CYLINDER***



For any questions, please email me at david.schultz@manualbrakes.com or call me at 832-264-5566


1.125" Bore Master Cylinder

1919 West Sam Houston Parkway North

Houston, TX  77043

1.0" Bore Master Cylinder

Can be used with the Wilwood 1.0" and 1.125" Bore Master Cylinders

MALIBU DAVE'S

​We ship to Canada.  Additional shipping charges will apply.

                Please email to request a shipping quote.
